产品概述：Product Overview

此系列充电机外壳采用一体化压铸铝结构；机器内部采用灌胶工艺；适用于富液铅酸电池、密封(胶体)铅酸电池、 锂电池、镍氢电池、镍镉电池等；可用于电动轿车、电摩、电动观光车、巡逻警车、叉车、电动堆高车、电动搬运车、 通讯、电力、船舶等电池组循环充电或者浮充电。

 the chargers are designed with integrated die-casting structure. They are suitable for flooded lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc.  Widely used in the cycling charge and floating charge of  battery packs in the E-car, E-motorcycle,sightseeing  car,patrol car,forklift ,  AGV, communication,power, ship ,etc.

技术参数 (Technical parameters)

- 交流输入电压范围：180 - 260VAC; 45 - 65Hz

(Ac input voltage range)

- 交流输入最大电流：7A@220VAC

(AC max input current)

- 功率因数：≥0.98

(PFC)

- 最高效率：93.0%（满载时@220VAC）

(Max Efficiency)

- 噪声：≤45dB

(Noise)

- 防护等级：IP66

(Protection grade)

- 重量：3.0kg±0.3kg

(Net weight)

- 工作温度：-30℃ - +55℃

(Working temperature)

- 存放温度：-40℃ - +95℃

(Storage temperature)

- 可选配CAN总线控制；可外接三色指示灯；充电锁止(充电过程

通过继电器可锁止车辆动力系统);满足各种场合充电需求。

Can be with CAN bus; Can be connected with three - color indicator light; Charging

lock function (The vehicle power system can be locked through the relay during charging

process.); Meet the requirements for various occasions.

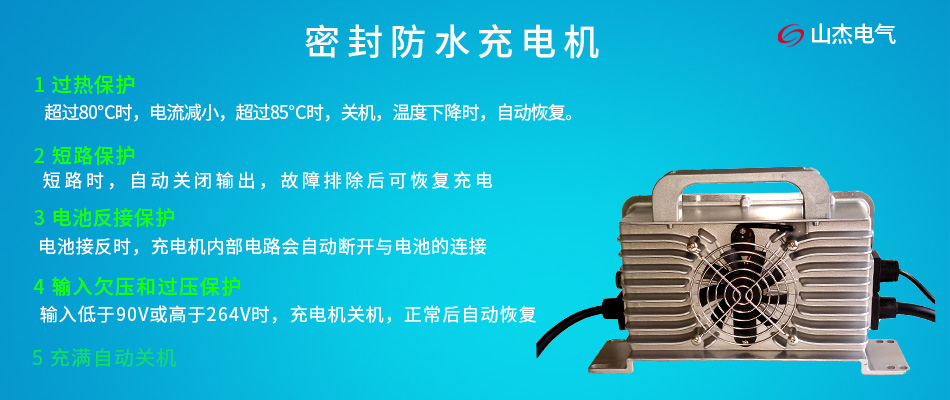

保护功能 (Protective function)

输出过流保护

Output overcurrent protection

输出过压保护

Output overvoltage protection

输出短路保护

Output short circuit protection

输出空载保护

Output no-load protection

输出反接保护

Output reverse connection protection

输入过压保护

Input overvoltage protection

输入欠压保护

Input undervoltage protection

充电机过温保护

Over temperature protection

CAN 通讯故障保护

CAN failure protection

充满自动关机

Fully charge automatic shutdown
